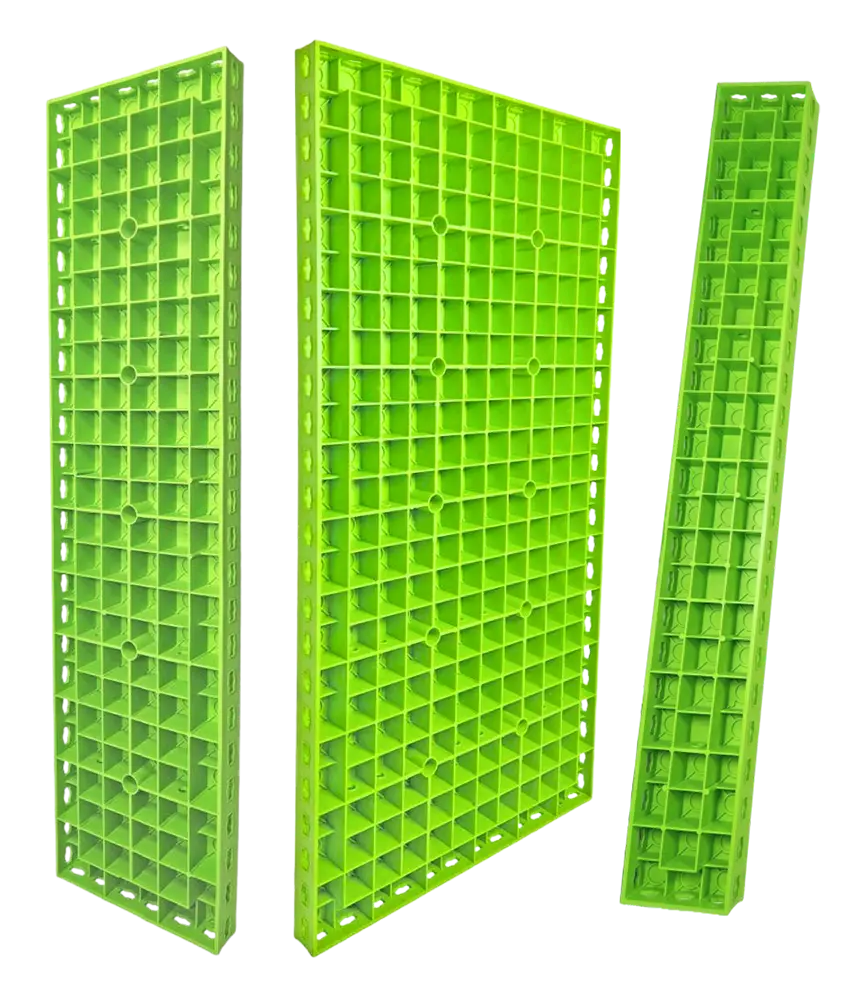

Plasform panel sizes

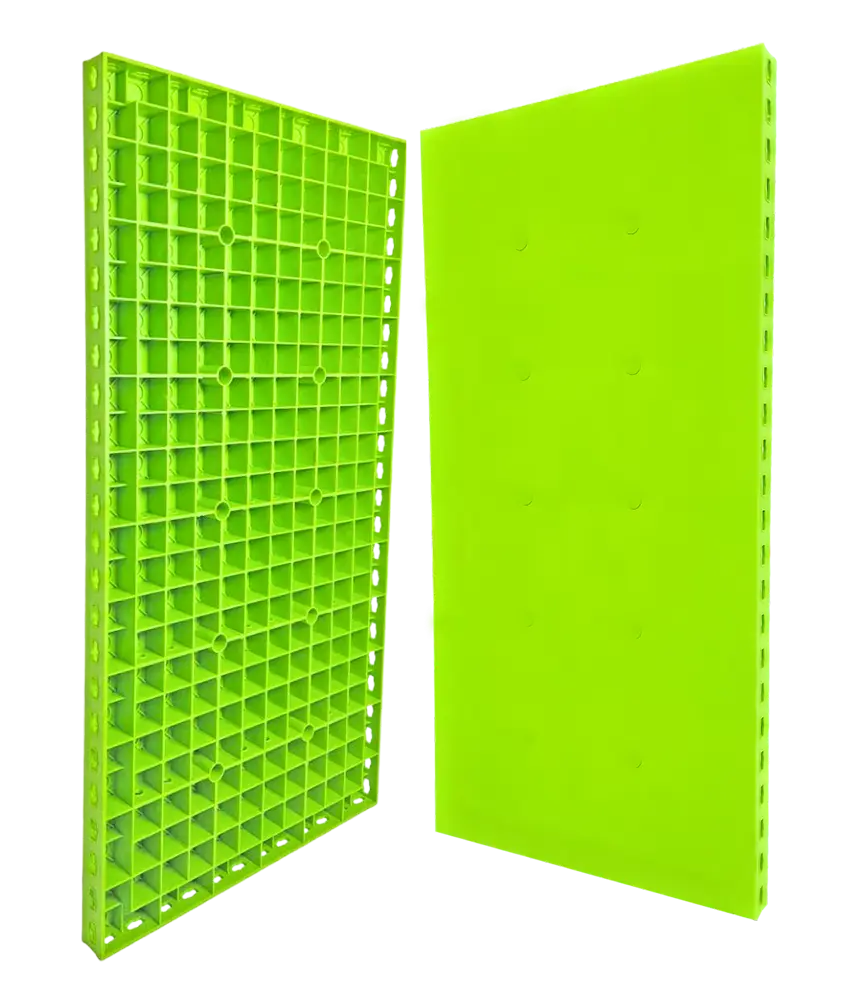

V3 panel – recommended for floor slabs, beams, and tables.
1. Screw-hole grid
Makes it easy to affix framing systems and clamps.
2. Preset rib holes
Allow faster installation of J-bolts to connect the panel and backing support
New V4 panel – recommended for columns and walls.
Mechanical Properties
| Material properties | |
|---|---|
| Elongation at yield | 10% |
| Softening temperature up to | ≥ 150°c |
| Rockwell hardness | 82 R Scale |
| Water absorption | 0.02% |
| Design data | |
|---|---|
| Allowable bending * | 0.45kNm/m |
| Allowable shear * | 13.6kN/m |
| Flexural rigidity, EI | 2.10kNm2/m |
| Allowable bearing load on panel * | 500kN/m2 |
| Allowable shear on pin * | 0.68kN |
| * Factor of Safety (FoS) = 2.5 | |

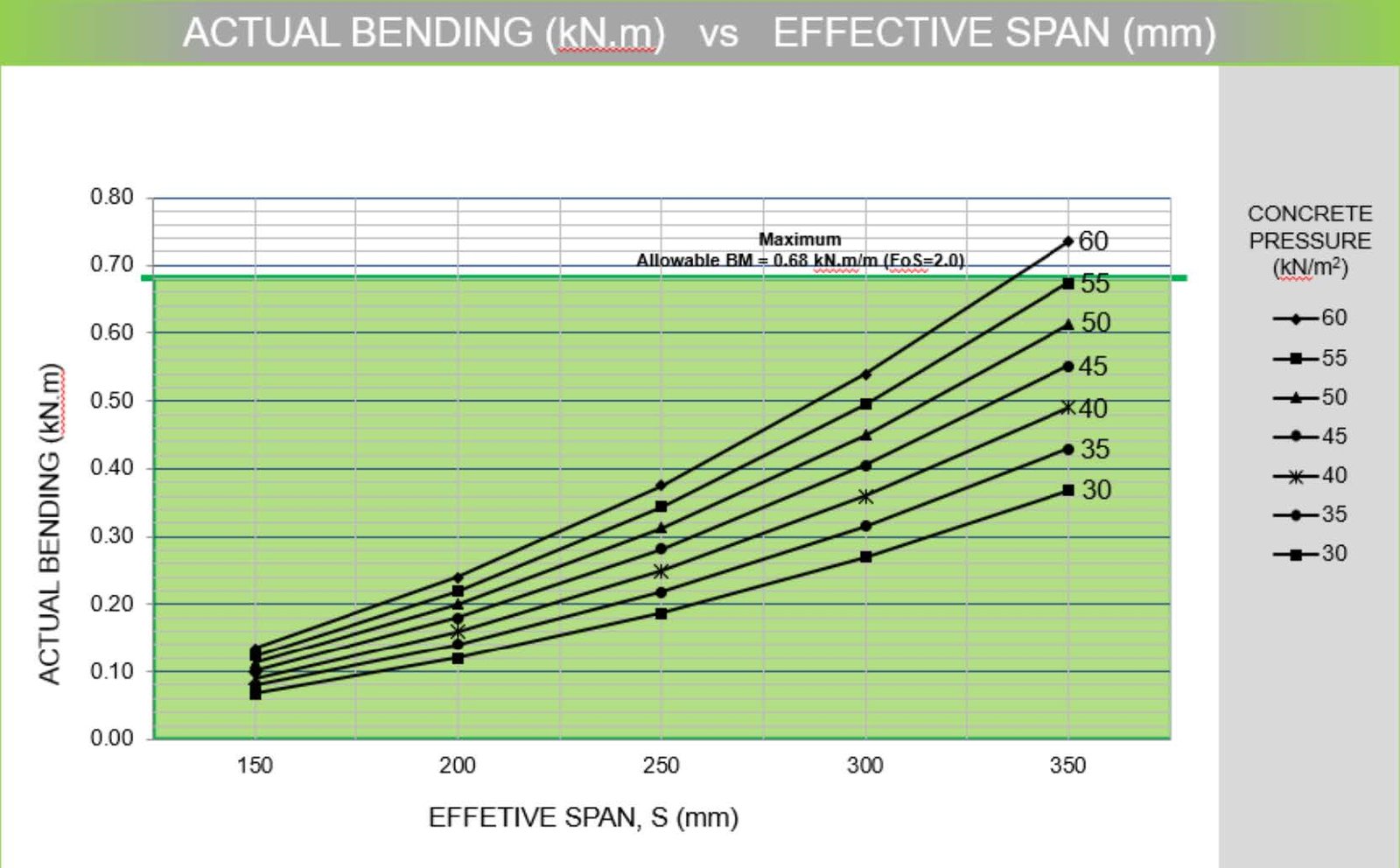

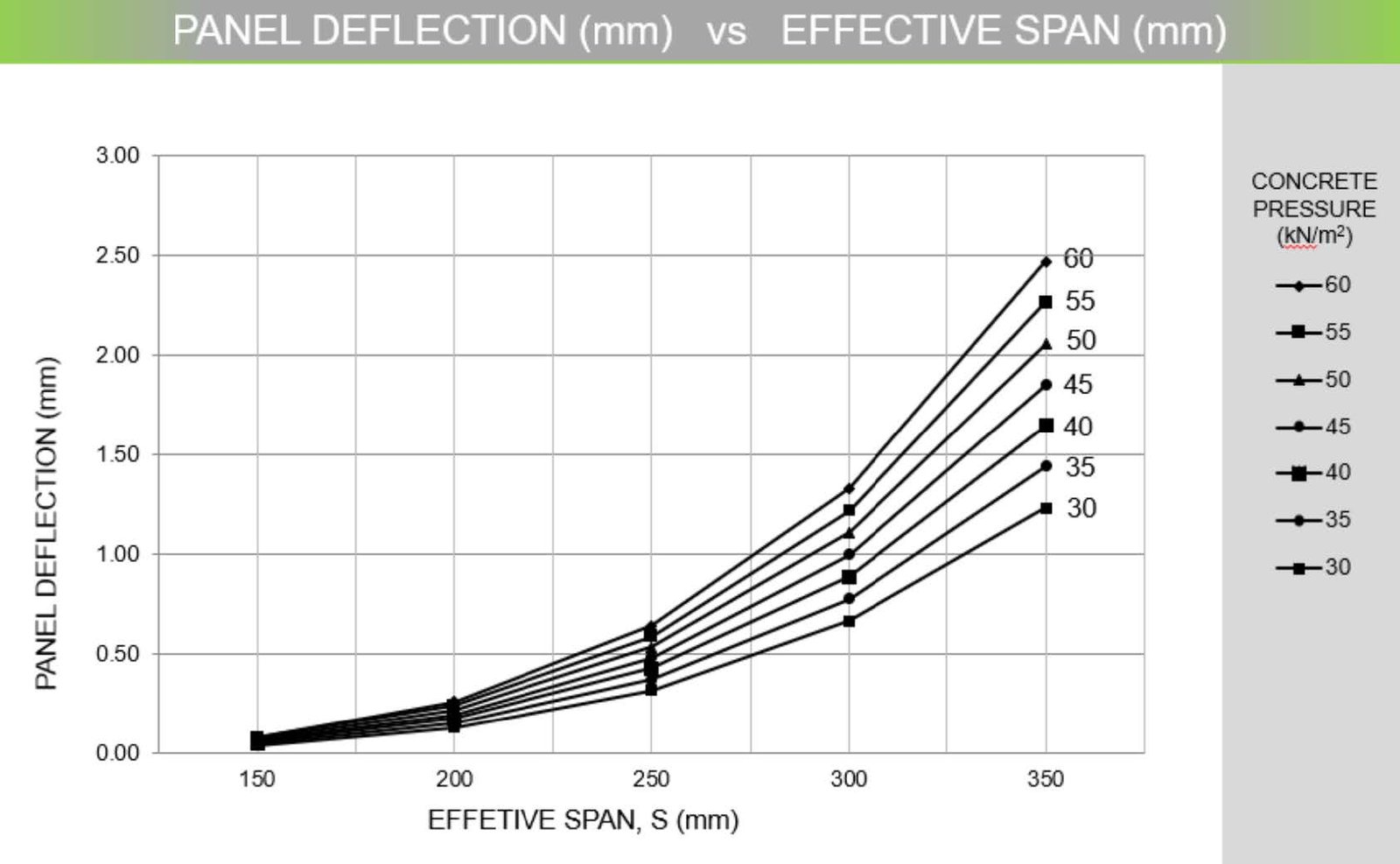

Wall Design Data

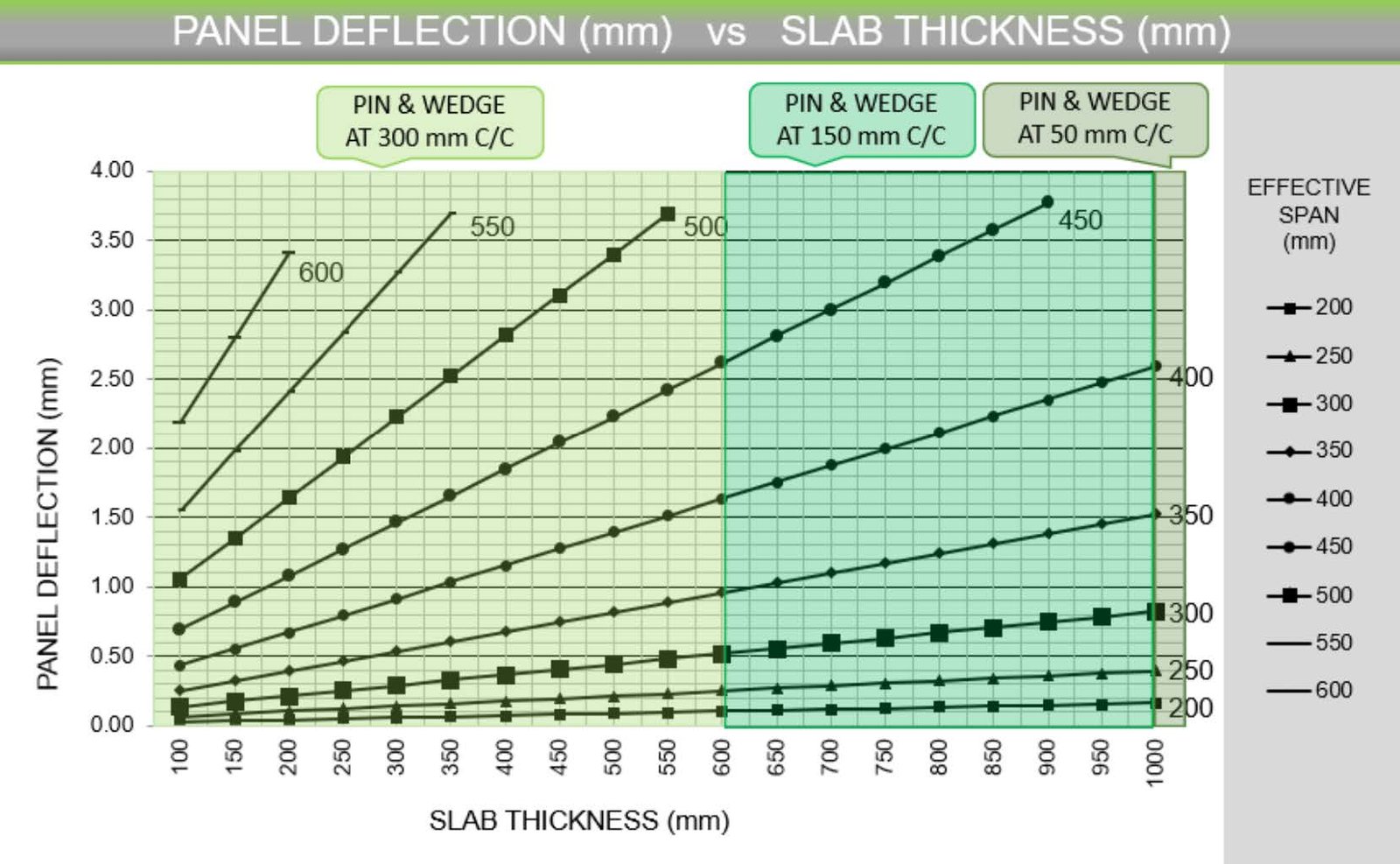

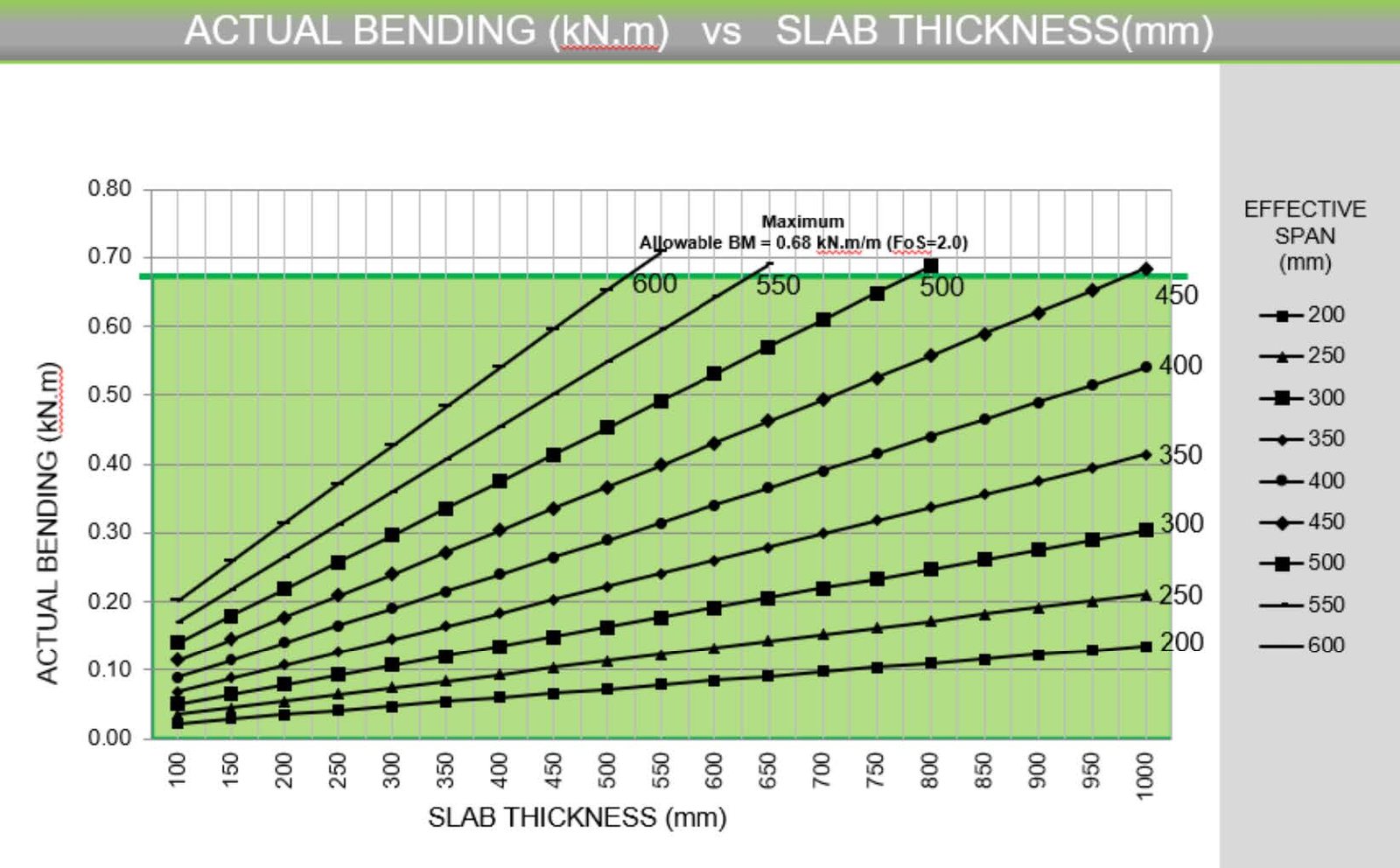

Soffit Design Data
